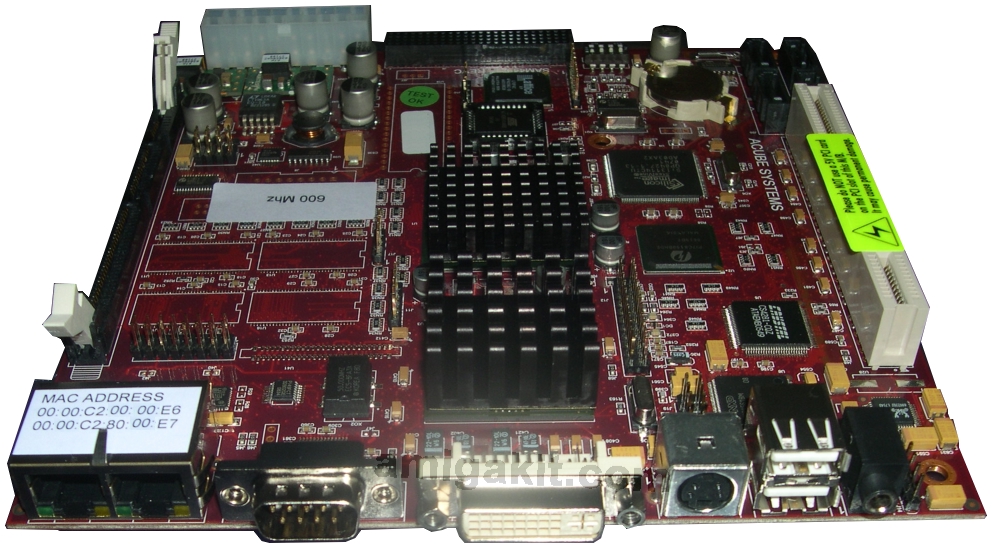

SAM440ep motherboard with PowerPC 440ep CPU running at 600Mhz clock speed, compatible with the latest
AmigaOS 4.1(available separately). Supplied complete with
512 MB RAM.
We can supply this with a
160GB hard disk pre-installed with OS4.1 (
see below for options). A suitable case that we stock can be found
here and suitable DVDRW can be found
here. A suitable wireless network card can be found
here.
Technical Specifications
- MiniITX Form Factor (17x17 cm)
- CPU SoC AMCC 440ep
- Specially selected 533 running at 600Mhz
- Integrated DDR 266 memory controller
- Integrated PCI controller
- Integrated Flash memory devices controller
- Integrated USB 1.1 Host and 2.0 Device controller
- 2 integrated Ethernet 10/100 ports
- Up to 4 serial ports
- 2 I2C interfaces
- SPI interfaces
- 64 pin for I/O General Purpose
512 MB DDR soldered onboard (or in alternative a DDR DIMM 100 slot, max
512 MB)
USB 2.0 OHCI/EHCI NXP PCI controller
Audio Cirrus Logic CS4281 and Realtek ALC655 Codec
Silicon Image 4 Serial ATA ports
ATI RADEON Mobility M9 with 64mb RAM graphic chip
Pericom 8150B PCI Bridge
FPGA Lattice XP with 80 pin I/O expansion connector
PCI Slot - 32 bits, 33 Mhz
mini PCI Slot - 32 bits, 33 Mhz (optional)
RTC with backup battery
UBoot 1.3.1
|

 |
