DVI A1200 Backplate for Indivision 1200MK2cr
category/product code:   adapters/interfaces » DVIBCKIND
4.60 Price includes VAT
QTY:
select your region:
DVI A1200 Backplate for Indivision 1200MK2cr
enlarge

Indivision AGA 1200 MK2cr for the Amiga 1200 and 4000T*


Features
Flicker fixer with DVI-I output for the A1200
A1200 internal, plugs over Lisa chip, no other chip-connections (other internal flickerfixers used an additional Alice-adapter)
Full 24 bit colour depth for most screenmodes and output frequencies**
All OCS/ECS/AGA screenmodes displayed and scan-converted, output is always over 60Hz and flicker-free
16MB frame buffer on-board
Pixelclock now can output at a maximum of 135MHz
Use screenmodes such as HD720 (1024x768) and XTREME (1280x1024) on your Amiga 1200!

DVI to VGA adapterThe DVI-I connector can be connected to a standard VGA monitor through use of an optional adapter (configured below).
We also stock HDMI to DVI Cable (1.5m).

DVI A1200 back Plate
The DVI-I connector can be mounted securely in the rear trapdoor of the A1200 with use of an optional back plate (configured below).
.

As additional screenmodes become available in future, the firmware can be updated by the user using the software tools available now to download.

Indivision AGA 1200 MK2cr
(click to expand)

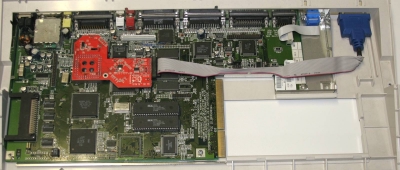

Installed In A1200
(click to expand)
Important Installation Notes:
* For the Amiga 4000T there has been a important change since the previous version. Installation in the A4000T requires removal/replacement of electrolytic capacitor CE164C with a lower-profile type from the motherboard as the new connector is exactly in the place of that cap.

This version is compatible with all Amiga 1200 motherboard revisions. Upper metal RF shielding will have to be removed to install the unit onto the Lisa chip of the A1200 motherboard. DVI socket will need to be mounted in suitable location- we suggest rear trapdoor area on a desktop 1200.

Not compatible with the desktop A4000. A4000 desktop users should alternatively use the Indivision AGA 4000 / CD32 MK2cr

The Indivision's software configuration tool is still in development and ongoing updates will be made available to customers in future. Firmware updates and software are available as an Internet download and will need to be transferred to your Amiga for use.


** SuperPlus and A2024 screenmodes are not supported

Don't Forget:
Anti Static Wrist Strap Band
HDMI to DVI Cable (1.5m)

1x Product Review(s)
